Specialized Solar Module Laminator
Qinhuangdao Hongchengda(HCD) It is a comprehensive high-tech enterprise dedicated to R&D, manufacturing, sales, and after-sales service of solar module laminators and special equipment for other industries.
Why Choose Us
Rich In Experience
Experienced technical team especially for solar module laminators, we can do the effective laminating area within 12500mm*2900mm, cover all different kinds of solar modules like.
Quality Control
Incoming Quality Control&Manufacturing Process Inspection&Finished Product Inspection
Three links of quality inspection, to ensure the quality of the machine and more than 15 years of service life.
After Sales Service
Preparation Before Laminators' Arrival&On Site Installation, Debugging And Training&7*24hours Remote Technical Support
Will be greeted with warm, friendly and professional service, with the after sales engineer whom from solar module maker factory, In order to make customers more comprehensive and convenient use of the whole machine.
Technical Parameters
|
Parameter |
Laminated Size |
Machine Size |
NW (T) |
Power (KW) |
Pump |
Annual Output |
|
|
Model |
Max |
Working |
Speed |
||||
|
OCY2211 |
2200×1100 |
2560×1460×1270 |
3.2 |
27 |
4.4-17.3 |
30 L/S |
2.4MW |
|
OCY2222 |
2200×2200 |
2560×2830×1270 |
4.8 |
33 |
6~19 |
30 L/S |
4.8MW |
|
Heating Mode |
Oil Heating |
Power Supply |
AC380V Triphase five Wires |
|
Control mode: |
Manual/ automatic |
Working Vacuum |
100mpa |
|
Laminating Time |
6-8mins (excluding curing time) |
Temperature Control |
Intelligent PID Temperature Control |
|
Temperature Precision |
±2℃ |
Environmental Temperature |
0℃-50℃ |
|
Temperature Range |
30℃-180℃ |
Temperature Uniformity |
±2℃ |
|
Module Height |
25mm |
Air Supply required |
0.6-0.8MPa |
|
Vacuuming time |
2-6Min |
Compressed air flow required |
50L/Min |
Advantage of solar module laminator
Solar panel lamination ensures the lifetime of the module's solar module laminator.
They need to be able to withstand outdoor exposure for 25 years or more in all types of climates Solar panel lamination ensures the longevity of the module's solar module laminators as they need to be able to withstand outdoor exposure in all climates 25 years or more. Solar modules need to convert sunlight into electricity at an acceptable cost throughout their life cycle. Encapsulation of solar cells by lamination is a critical step in the manufacture of conventional solar photovoltaic modules. Improper lamination can cause these modules to fail prematurely. Complete knowledge of the lamination process not only helps to make better products but also reduces losses such as cell rupture, air bubbles and delamination, which mainly occur due to incorrect processing parameters. The lamination process encapsulates solar cells between multiple substrate layers, including top and bottom protective layers.
Preparing The Solar Cells: The solar cells are cleaned and inspected for any defects or damage.
Applying The Encapsulant: The encapsulant material, usually EVA, is cut to size and placed between the solar cells.
Laminating: The solar cells with the encapsulant are placed on the conveyor belt and fed into the Solar Laminating Machine.
Heating And Vacuuming: The heating system melts the encapsulant material, while the vacuum system removes air bubbles.
Applying pressure
The pressure system applies uniform pressure to ensure proper bonding.
Cooling
After the lamination process, the solar panels are cooled to solidify the encapsulant material.
Testing and quality control
The laminated solar panels undergo rigorous testing to ensure they meet the required standards.
Packaging and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Factory

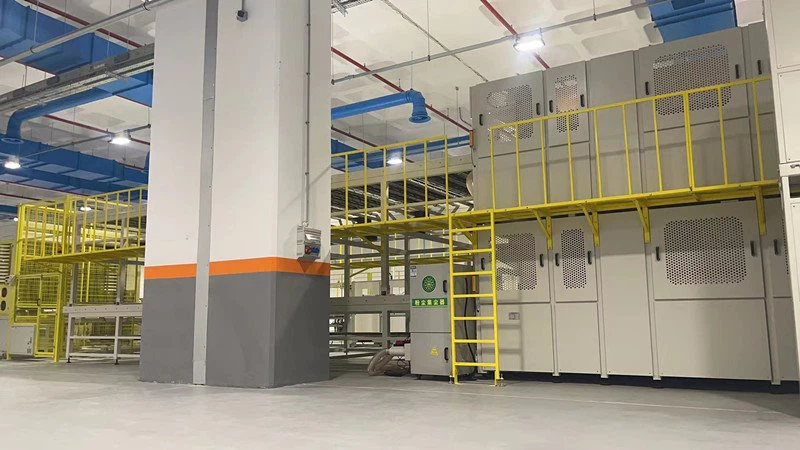

Cover all different kinds of solar modules like crystalline silicon module, BIPV module, IBC/Topcon/HJT modules, Perovskite/ CdTe(cadmium telluride) modules and curved glass modules. Also for Oil heating, electrical heating, and bifacial heating laminators.
